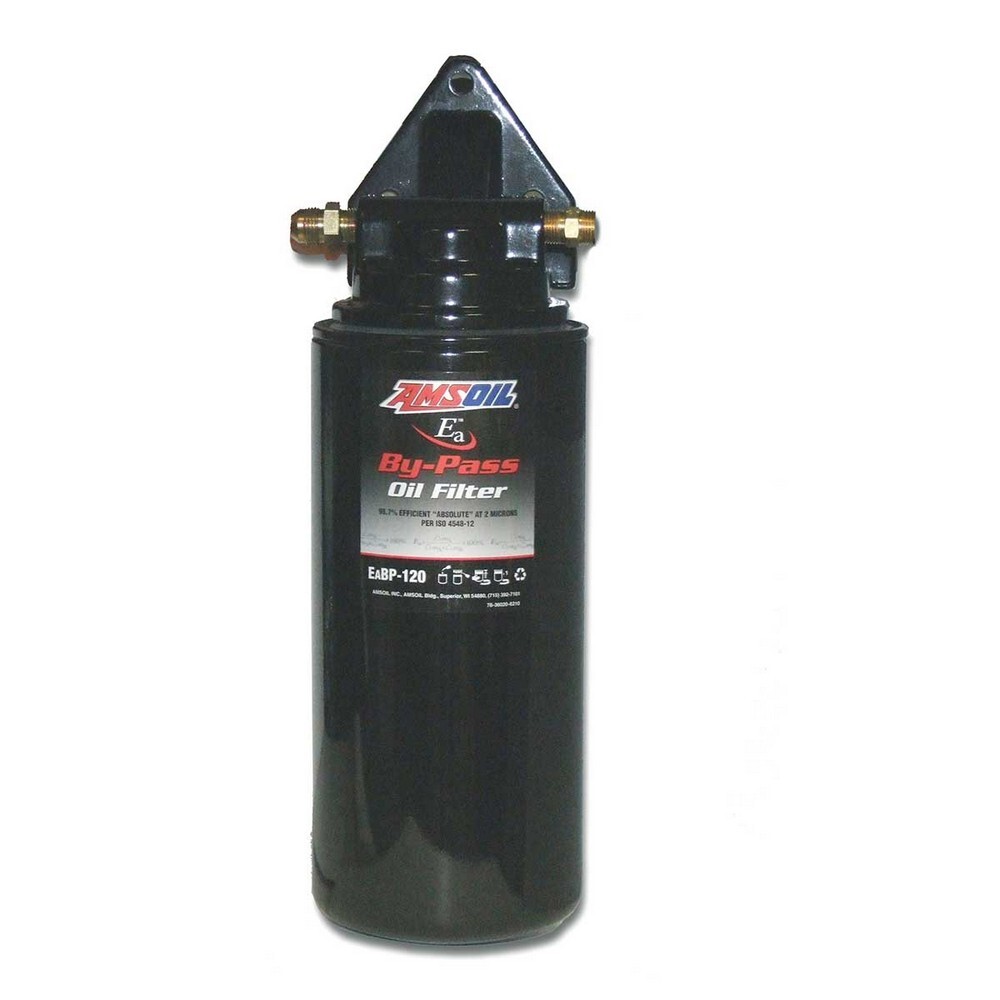

AMSOIL BMK30 Heavy-Duty Bypass System

The AMSOIL BMK30 Heavy-Duty Bypass System is a high-capacity bypass filtration system designed for large diesel engines, commercial vehicles, construction equipment, agricultural machinery and industrial applications. Used with the large-capacity EABP120 Bypass Oil Filter, it provides extremely efficient fine-particle and soot filtration for engines with large oil capacities and demanding operating conditions.

Bypass filter sold separately. The BMK30 system supplied by AMSOIL Australia does not include the EABP120 Bypass Oil Filter. Order the required filter separately.

Designed for Heavy-Duty Applications

The BMK30 is designed specifically for applications requiring greater filtration capacity than AMSOIL's smaller universal bypass systems. It uses the EABP120, the largest filter in the AMSOIL Ea Bypass Oil Filter range, and is suitable for engine oil capacities from approximately 22.7 to 56.8 litres.

High-Efficiency Bypass Filtration

The BMK30 works alongside the engine's existing full-flow oil filter. A portion of the engine oil is continuously directed through the EABP120 bypass filter before being returned to the engine's lubrication system.

AMSOIL Ea Bypass Oil Filters provide 98.7% absolute efficiency at 2 microns, removing extremely fine contaminants and soot particles that conventional full-flow filters cannot efficiently capture.

Increased Oil and Filtration Capacity

The EABP120 adds approximately 3.8 litres of oil capacity to the lubrication system. The additional oil and high-capacity filter media increase total system capacity while providing continuous fine-particle filtration during operation.

Universal Heavy-Duty Installation

The BMK30 is a universal heavy-duty system rather than an engine-specific kit. Installation requires suitable pressurised oil supply and return locations on the engine. Application-specific adapters required to connect the system to the engine are sold separately.

Features

Heavy-duty bypass filtration system for large-capacity engines and equipment.
Designed specifically for use with the EABP120 Bypass Oil Filter.
Provides extremely efficient fine-particle and soot filtration.
Retains the engine's existing full-flow oil filter in its original location.
Increases total filtration capacity and engine oil capacity.
EABP120 adds approximately 3.8 litres of oil capacity.
Suitable for crankcase capacities from approximately 22.7 to 56.8 litres.
Heavy-duty remote filter mount and large 13/32-in oil hose.
Universal design for suitable heavy-duty, commercial, agricultural and industrial applications.

Bypass filter sold separately. The BMK30 system supplied by AMSOIL Australia does not include the EABP120 Bypass Oil Filter. Order the required filter separately.

Designed for the EABP120

The BMK30 uses one EABP120 Bypass Oil Filter. The EABP120 is specifically designed for the BMK30 Heavy-Duty Bypass System and provides the filtration capacity required for large heavy-duty lubrication systems.

Required Bypass Filter	EABP120
Filter Height	30.7 cm
Additional Oil Capacity	Approximately 3.8 L
Recommended Crankcase Capacity	22.7-56.8 L
Maximum Filter Service	193,100 km (120,000 miles), 1,800 hours or 1 year

Do not exceed the applicable distance, operating-hours or time limit, whichever occurs first. Additional oil capacity is an estimate; always verify the correct oil level using the engine oil dipstick.

Typical Applications

Heavy trucks and commercial vehicles.
Construction and earthmoving equipment.
Agricultural machinery.
Industrial engines and equipment.
Other suitable engines with large oil capacities.

Application-Specific Connections Required

The BMK30 is a universal system. Adapters for connecting the oil supply and return lines to the particular engine are not included and must be selected to suit the application.

Installation Considerations

The filter mount should be installed on a structure capable of supporting the weight of the filtration system and positioned where it is protected from road debris, off-road damage, excessive vibration, exhaust heat and moving components. Sufficient clearance must also be provided for installation and removal of the EABP120 filter.

Learn More About Bypass Filtration

For more information about bypass filtration, system selection and filter sizing, see our AMSOIL Bypass Oil Filtration Guide.

System Specifications

System	BMK30 Heavy-Duty Bypass System
System Type	Heavy-duty single-filter bypass filtration
Filter Mount	BK305
Required Bypass Filter	EABP120
Full-Flow Filter	Retained in original engine location
Oil Hose	13/32-in ID
Supplied Hose Length	15 ft (4.57 m)
Hose Fittings	3/4-16 JIC
Application Adapters	Application-specific - sold separately
Installation	Universal heavy-duty
Bypass Filter Included	No - AMSOIL Australia supply configuration

EABP120 Specifications

Filter	EABP120
Height	30.7 cm (12.1")
Filtering Efficiency	98.7% absolute at 2 microns
Additional Oil Capacity	Approximately 3.8 L
Recommended Crankcase Capacity	22.7-56.8 L
Maximum Distance	193,100 km (120,000 miles)
Maximum Operating Time	1,800 hours
Maximum Time	1 year

Kit Hardware

The BMK30 hardware package includes the BK305 filter mount assembly, mounting hardware, four BP260 hose fittings, cable ties and approximately 4.57 metres (15 ft) of BP250 13/32-in ID hose. Application-specific engine adapters are required separately.

Kit contents shown reflect the BMK30 hardware configuration. The EABP120 filter is sold separately by AMSOIL Australia.
