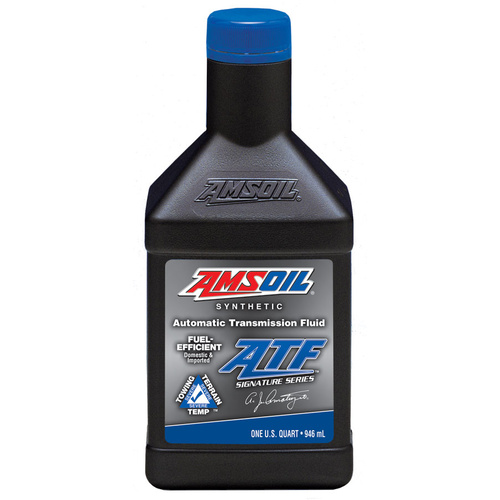

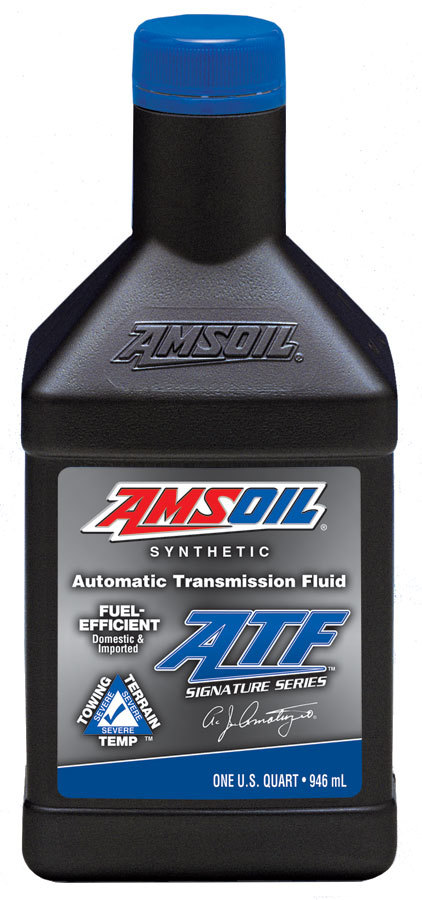

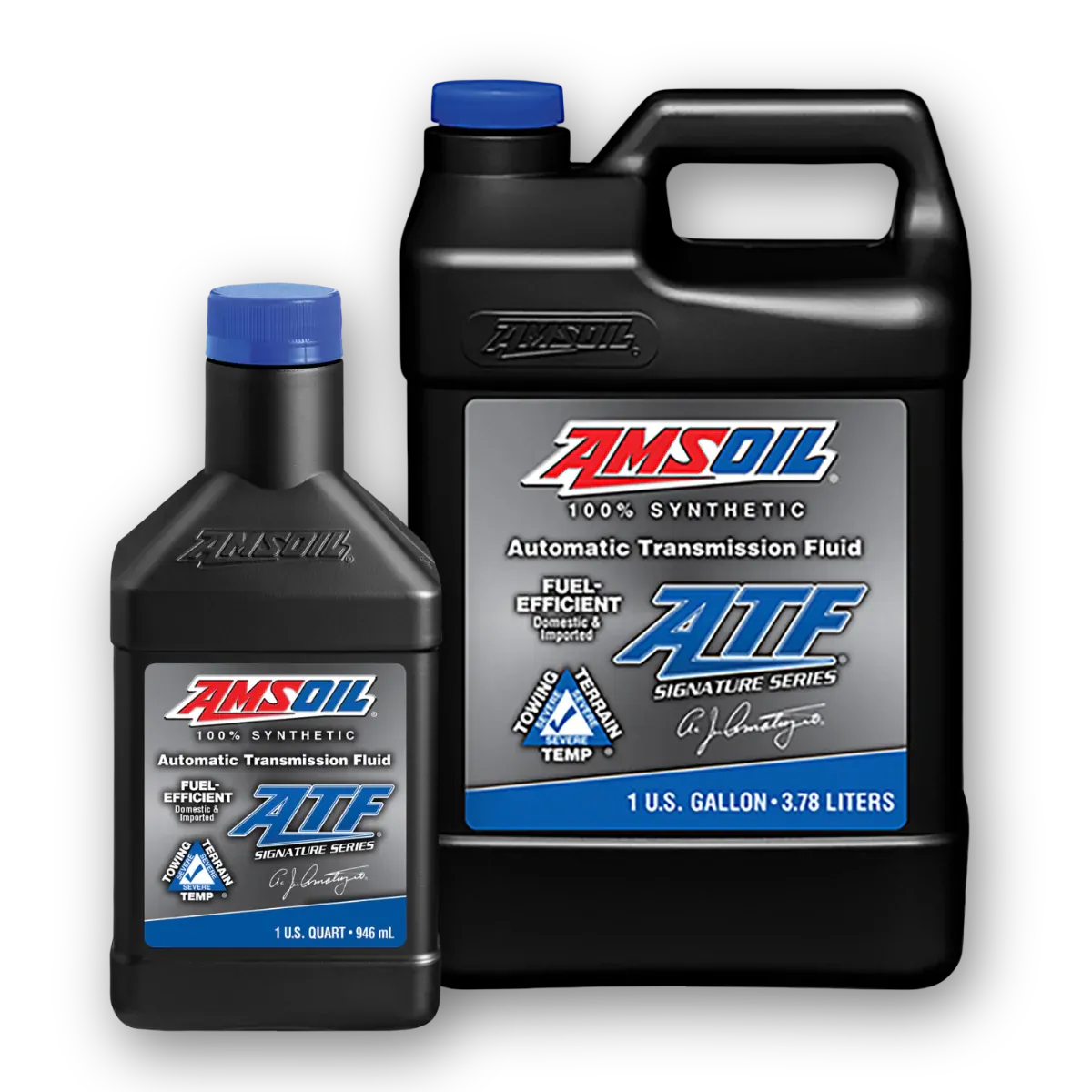

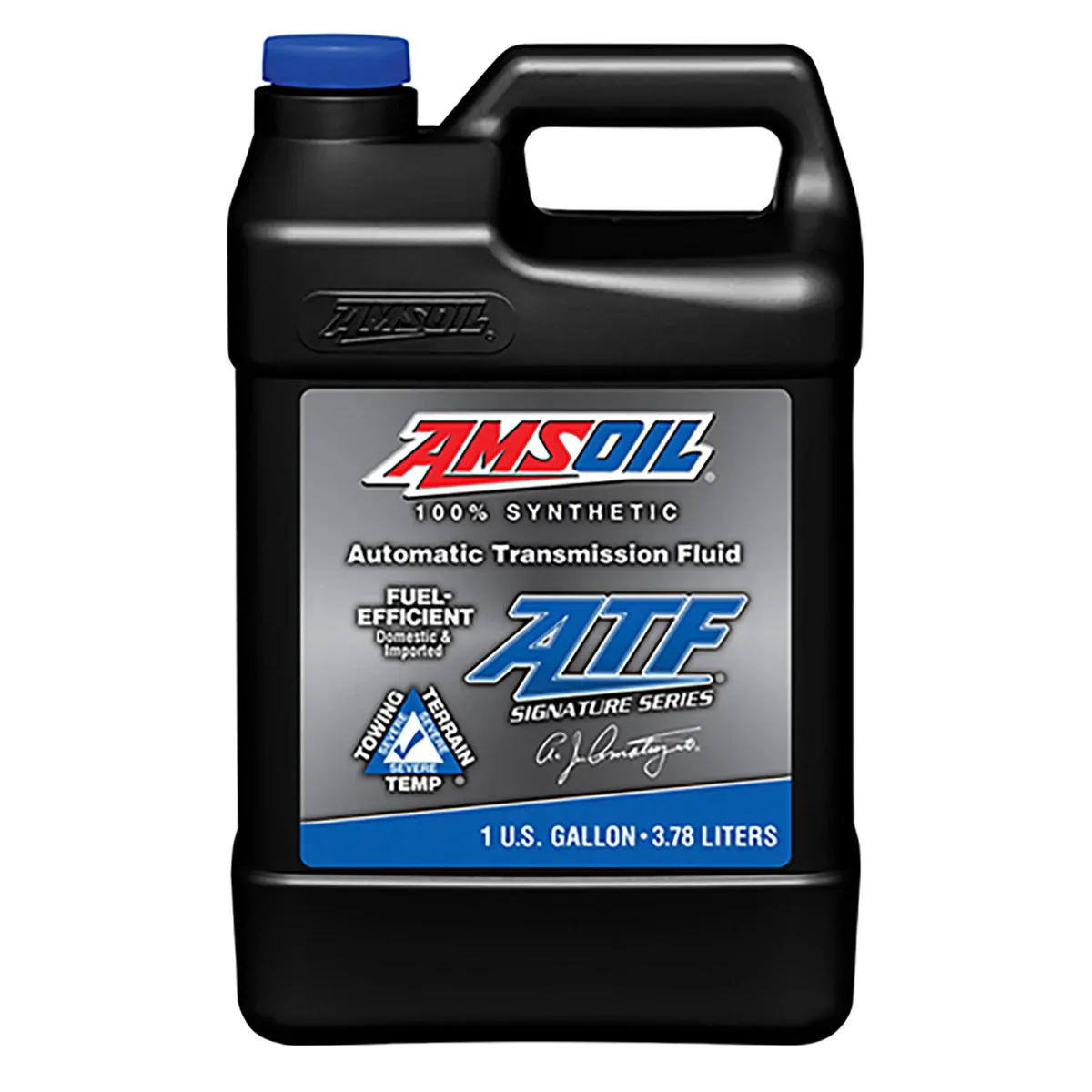

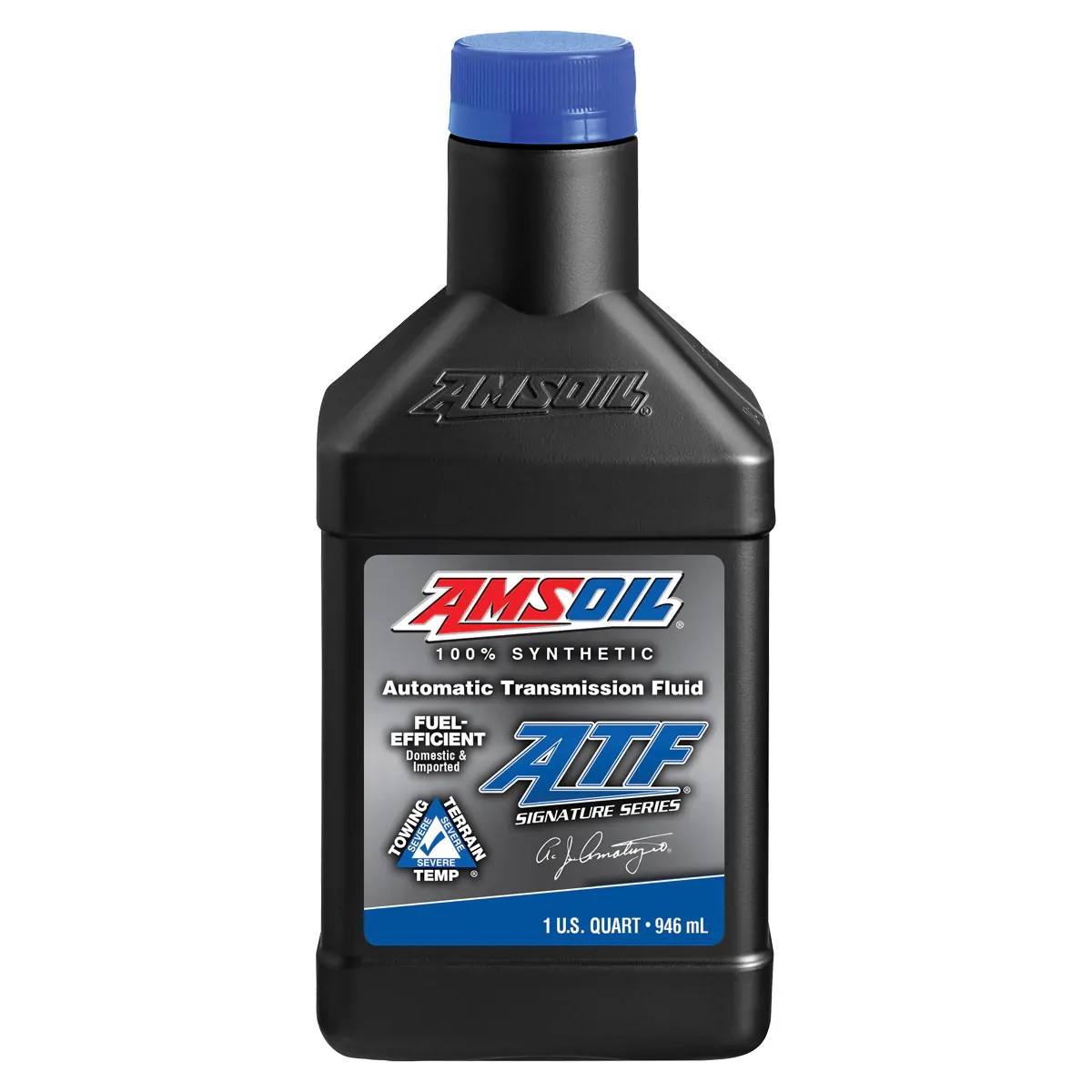

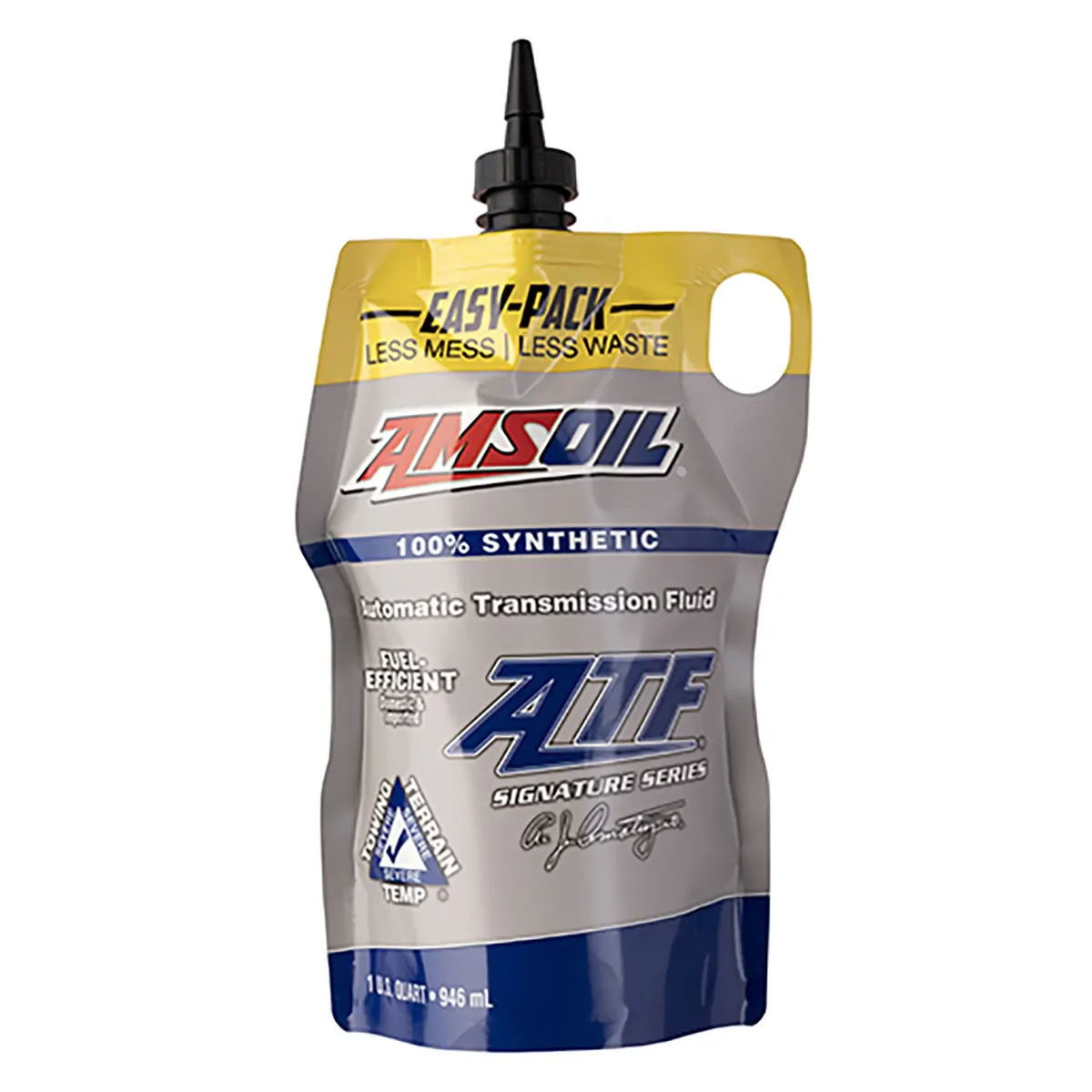

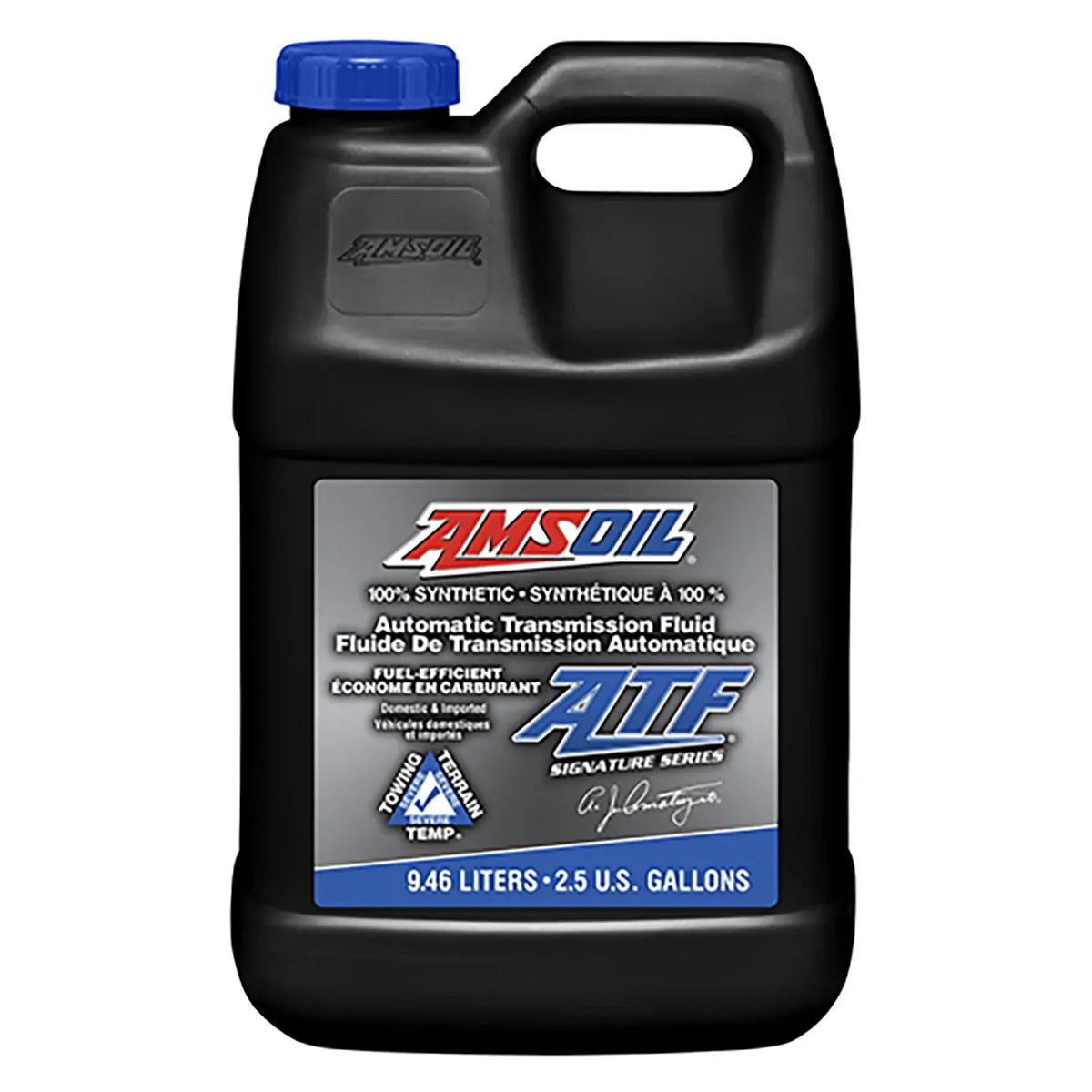

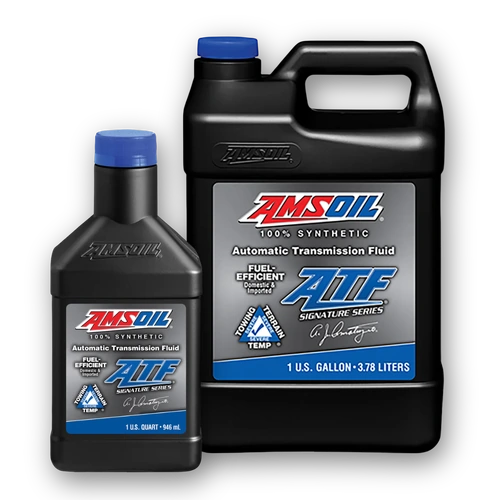

AMSOIL Signature Series Fuel-Efficient Synthetic Automatic Transmission Fluid
Extreme towing, extreme terrain, severe temperature
Transmissions in commercial vehicles, SUVs, trucks and vans – particularly those used for hauling or towing – are subjected to severe service operation and increased heat. Elevated temperatures cause fluids to break down, allowing damaging metal-to-metal contact and the formation of sludge and deposits. The problem is worse in modern transmissions with more gears, clutch packs and narrow oil passages that require clean, high-quality fluid to achieve maximum performance and life.
AMSOIL Signature Series Synthetic Automatic Transmission Fluid is specifically formulated to withstand the rigors of heavy towing, elevated temperatures and challenging terrain. It remains fluid in sub-zero temperatures and provides reserve protection during heavy use and abuse.
Proven in 180,000-mile, Severe-Service Taxi Fleet Field Trial
To demonstrate its effectiveness in severe service, Signature Series Multi-Vehicle Synthetic ATF was installed in Las Vegas taxi cabs. The vehicles routinely encountered demanding stop-and-go driving loaded with passengers and cargo, while the desert environment presented extremely hot ambient temperatures, placing enormous strain on the fluid. Following 180,000 miles, a transmission was selected for analysis.
The Aluminum Beaker Oxidation Test (ABOT) is an industry standardized test used to determine a transmission fluid’s oxidation resistance, which is a good indicator of its service life. Testing by an independent, third-party lab revealed that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF resisted oxidation longer than required for new fluid to meet the Chrysler ATF+4 specification. Internal components, including the valve body and clutch plates,were virtually free of damaging sludge, deposits and wear, confirming the lubricant’s high level of protection for severe-service applications.
Protects Against Thermal Breakdown
Signature Series Synthetic ATF is formulated with high concentrations of antioxidants, making it naturally heat resistant. It provides outstanding protection against sludge and varnish deposits that clog narrow oil passages and contribute to clutch glazing. After 180,000 miles in severe service, fluid analysis revealed Signature Series MultiVehicle Synthetic ATF contained 83% of its original oxidation inhibitors, proving its long-lasting resistance to thermal breakdown.
Outstanding Wear Protection
Varying speeds and loads causes torque multiplication and extreme stress on gears and bearings. AMSOIL formulated Signature Series Synthetic ATF with high film strength and premium anti-wear/extreme-pressure additives to help prevent wear during severe service. In the industry-standard FZG Gear Wear Test, Signature Series Multi-Vehicle Synthetic ATF that had been used for 180,000 severe-service miles achieved a “Pass” at stage 12 – the highest stage. The results exceeded the Ford MERCON V and Chrysler ATF+4 specifications for new fluid, demonstrating the lubricant’s long-lasting wear protection.
Cold-Temperature Fluidity
Cold, thick automatic transmission fluid lengthens shift times and reduces fuel economy. Signature Series Synthetic ATF is wax-free and delivers extraordinary cold-flow properties. It helps improve shift response, energy efficiency and warm-up times.
Friction Durability
Today’s transmissions are smaller and must withstand higher horsepower and torque while delivering smoother shifts, all with longer fluid life recommendations. AMSOIL Signature Series Synthetic ATF is formulated with friction modifier additives that deliver outstanding clutch-holding capacity (static friction), torque-transfer ability
(dynamic friction) and anti-shudder properties (slipping torque-converter clutches). Analysis reveals that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF provides nearly identical friction properties as new fluid for smooth, reliable shifts.
(ATL)
- Withstands the rigors of heavy towing, elevated temperatures and challenging terrain
- Remains fluid in sub-zero temperatures
- Provides reserve protection during heavy use and abuse
AMSOIL ATL meets the following ratings:
Meets the following manufacturer specifications:
- Aisin-Warner AW-1
- BMW 83 22 0 142 516
- BMW 83 22 2 152 426
- Chrysler MOPAR 68157995AA
- Chrysler SP-IV
- Chrysler 68218925AB
- DSIH 6p805
- Ford MERCON LV
- Ford SP
- Ford ULV
- GM DEXRON IV
- GM SP-IV-RR
- GM NWS-9638
- GM ULV
- Honda DW-1
- Honda Type 3.0
- Honda 2.0
- Hyundai SP-IV
- Hyundai SPH-IV
- Hyundai SP-IV-RR
- Hyundai NWS-9638
- Hyundai SP4-M
- JWS 3324
- Mazda ATF FZ
- Mercedes-Benz 236.12
- Mercedes-Benz 236.14
- Mercedes-Benz 236.15
- Mercedes-Benz 236.41
- Mitsubishi SP-IV
- Mitsubishi ATF J3
- Mitsubishi ATF-PA
- Mitsubishi ATF-MA1
- Nissan Matic-S
- Nissan Matic-W
- SAAB 93 165 147
- Shell M-1375.4
- Shell M-1375.5
- Shell M-L 12108
- Toyota WS
- Volvo 31256774
- VW G 055 005
- VW G 055 162
- VW G 060 162
- ZF S671 090 255
SKU | ATL |
Brand | AMSOIL |
Shipping Weight | 0.9500kg |
